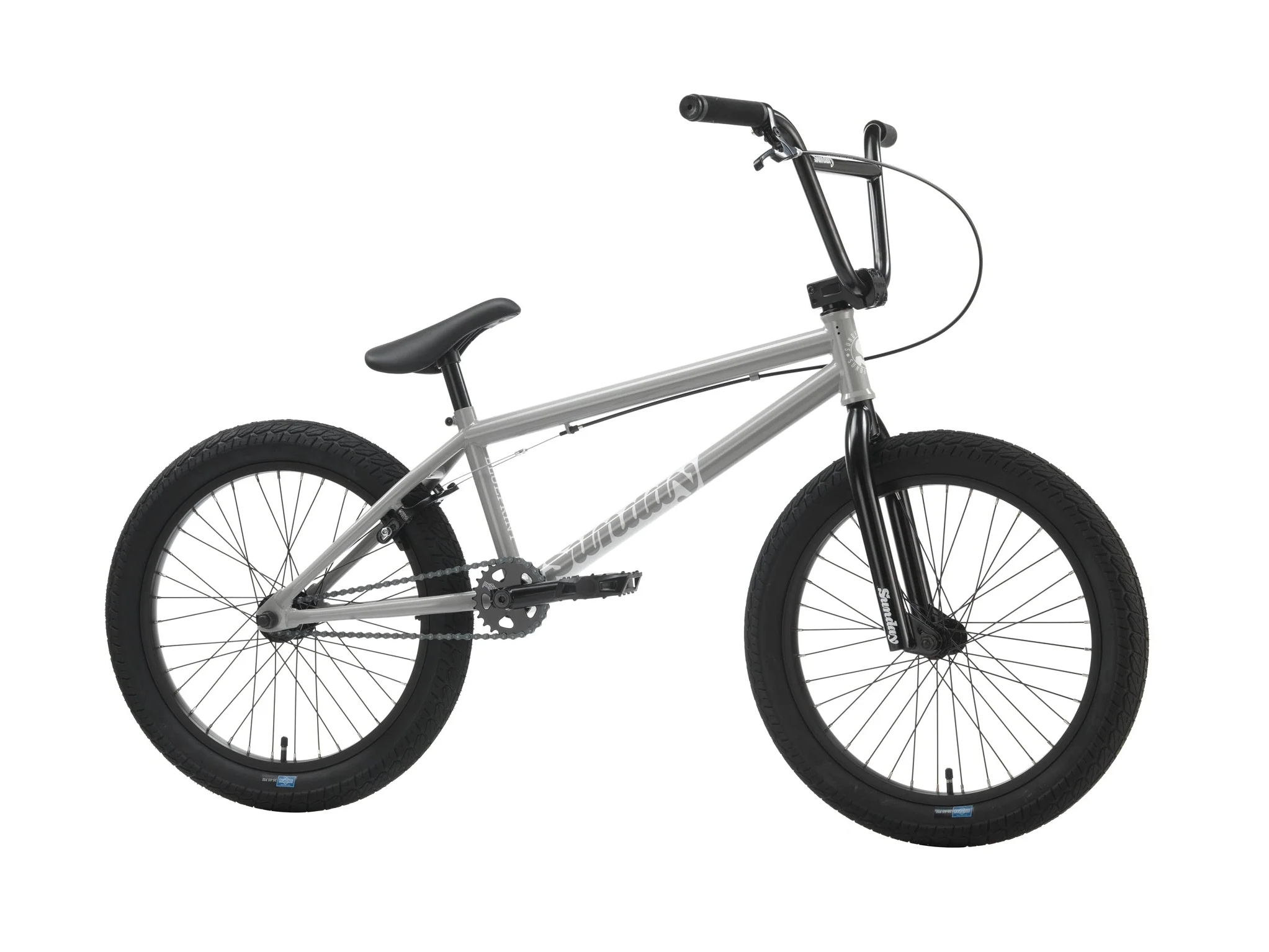

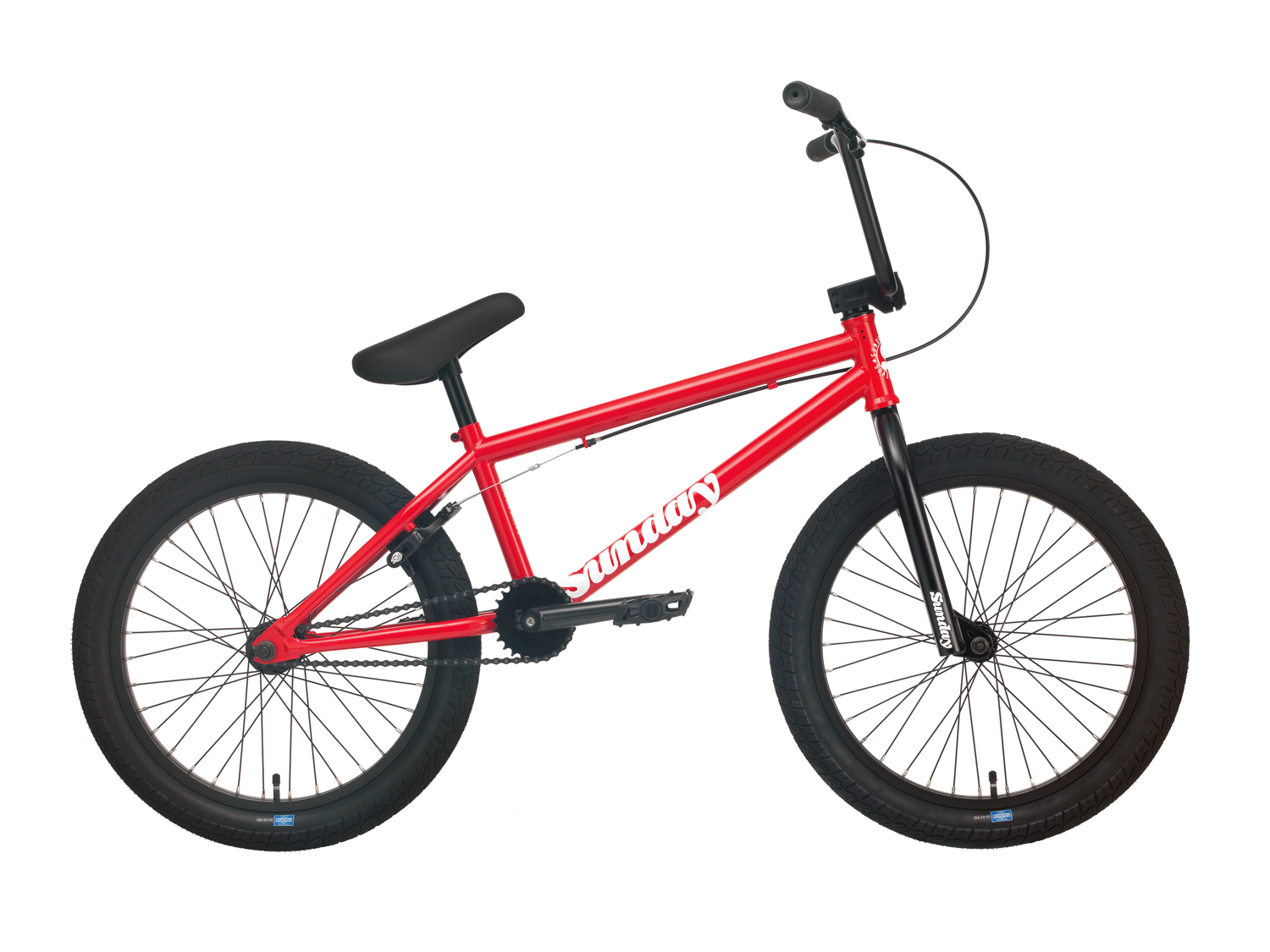

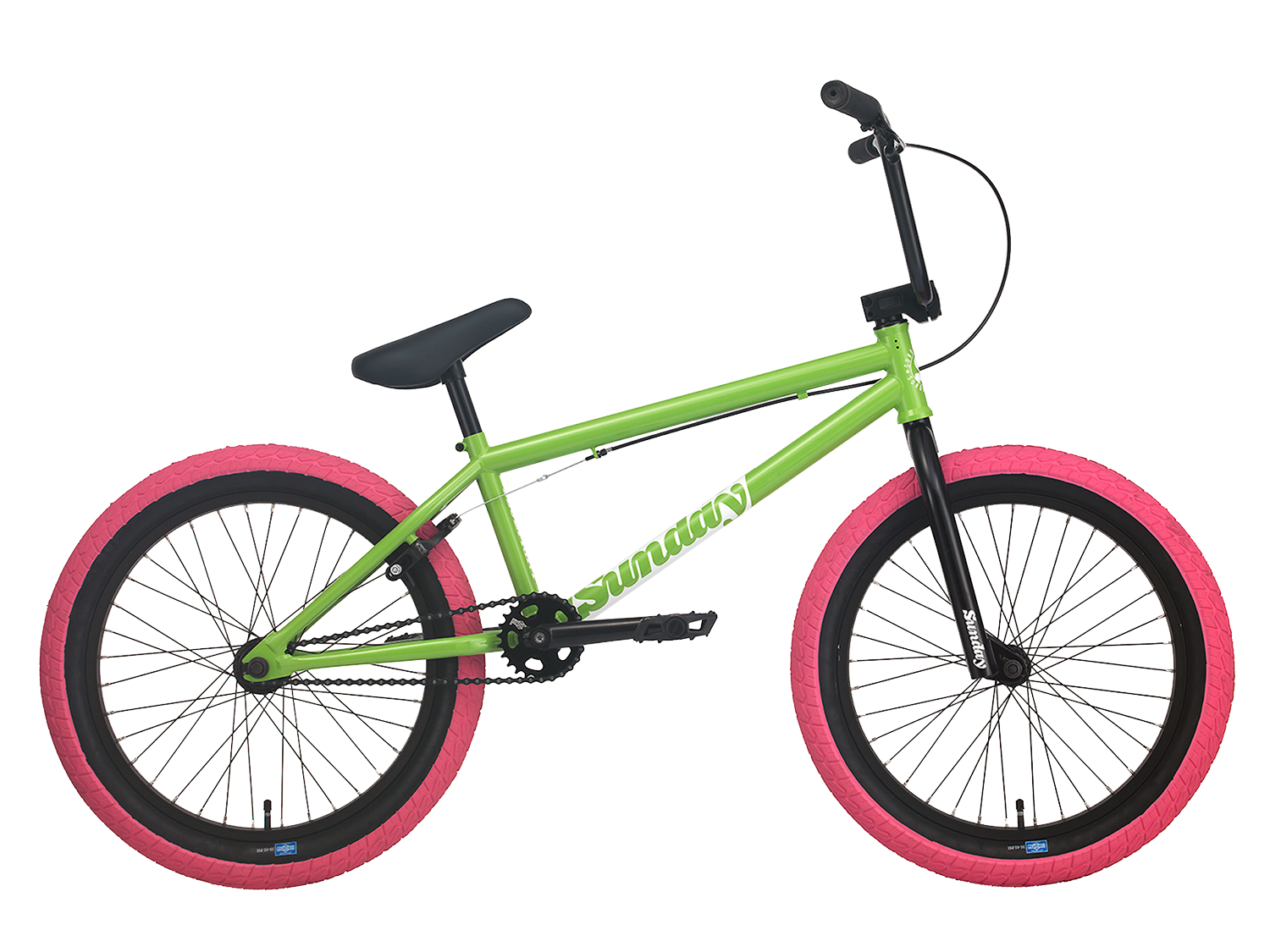

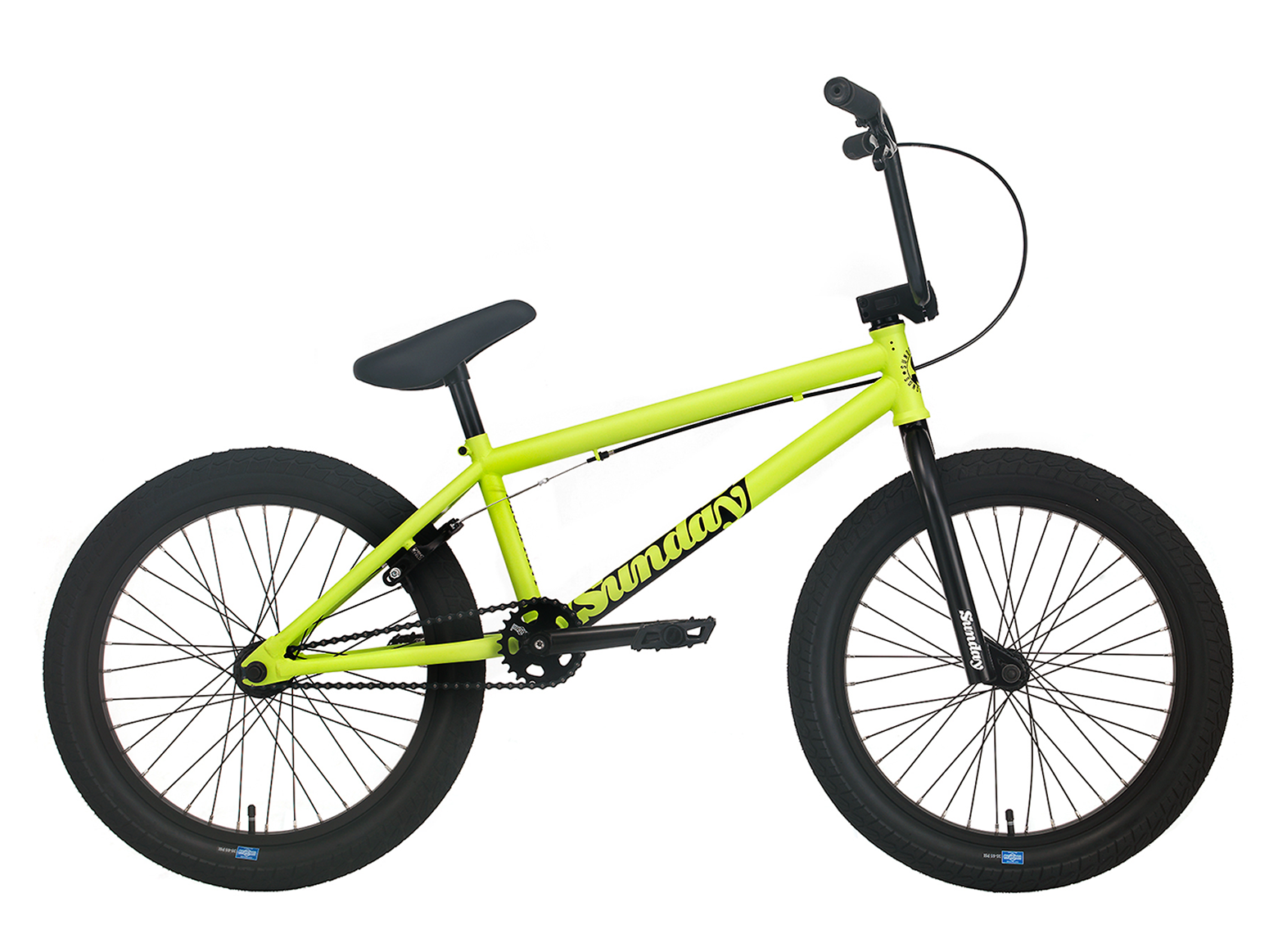

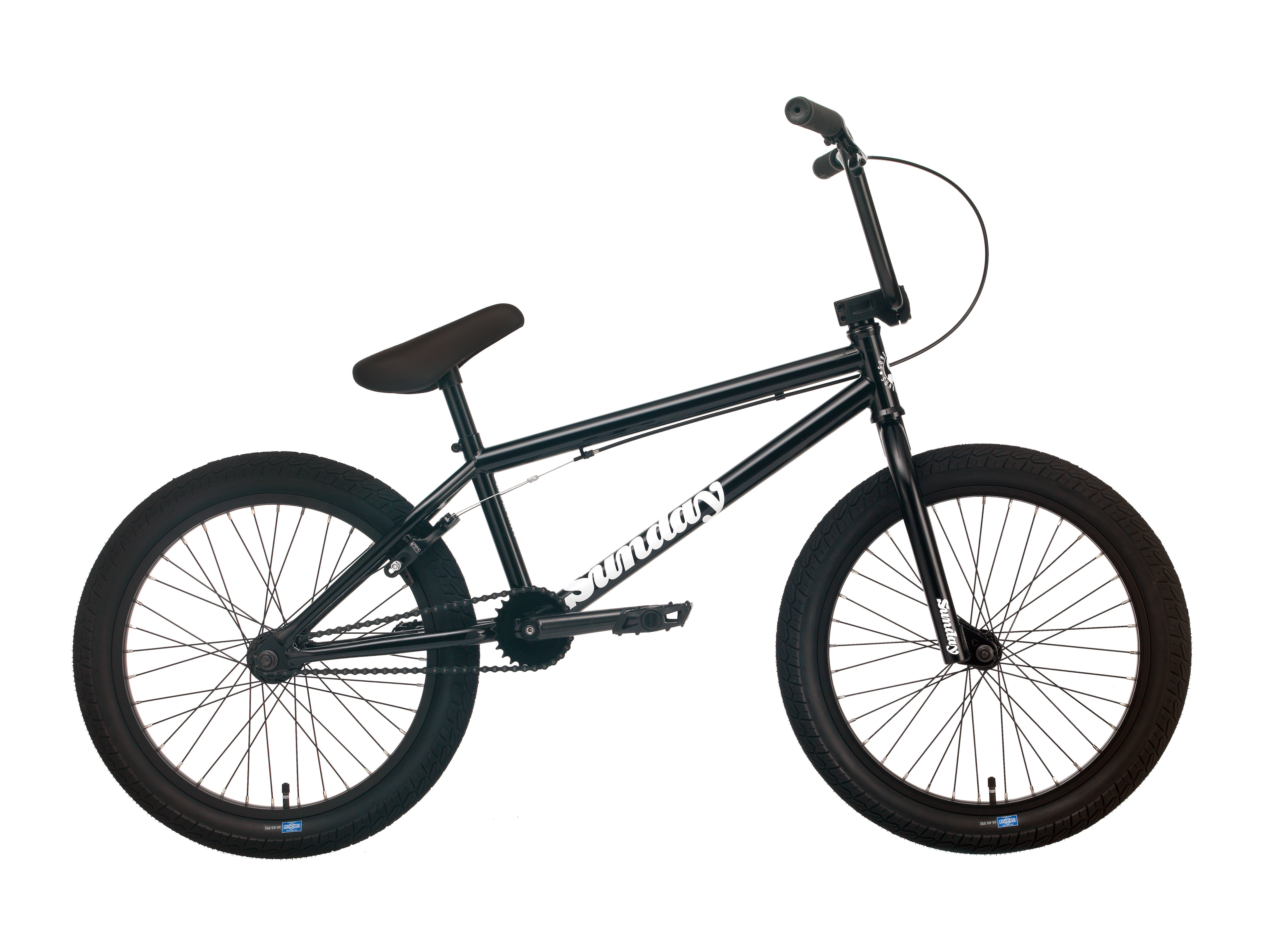

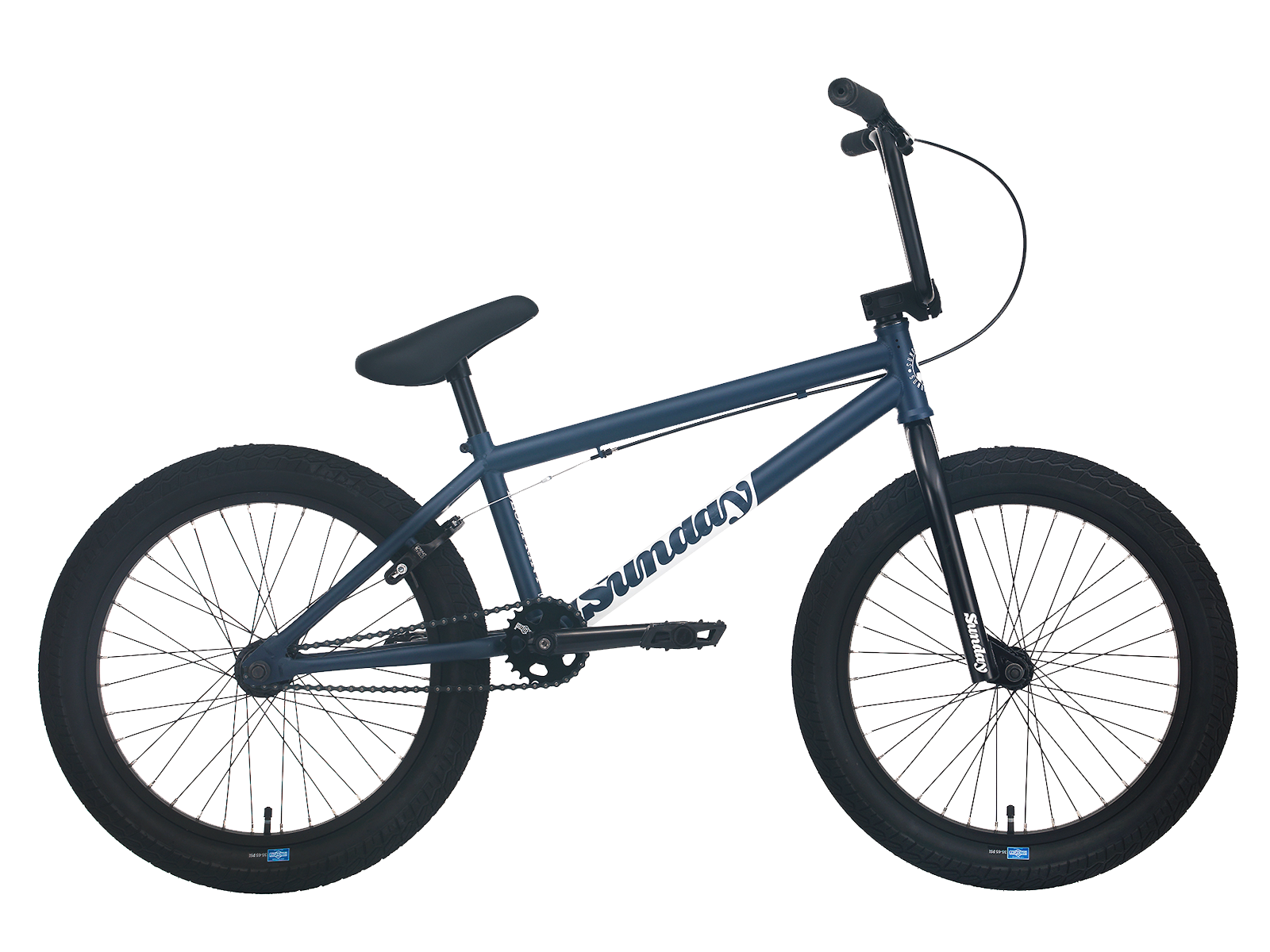

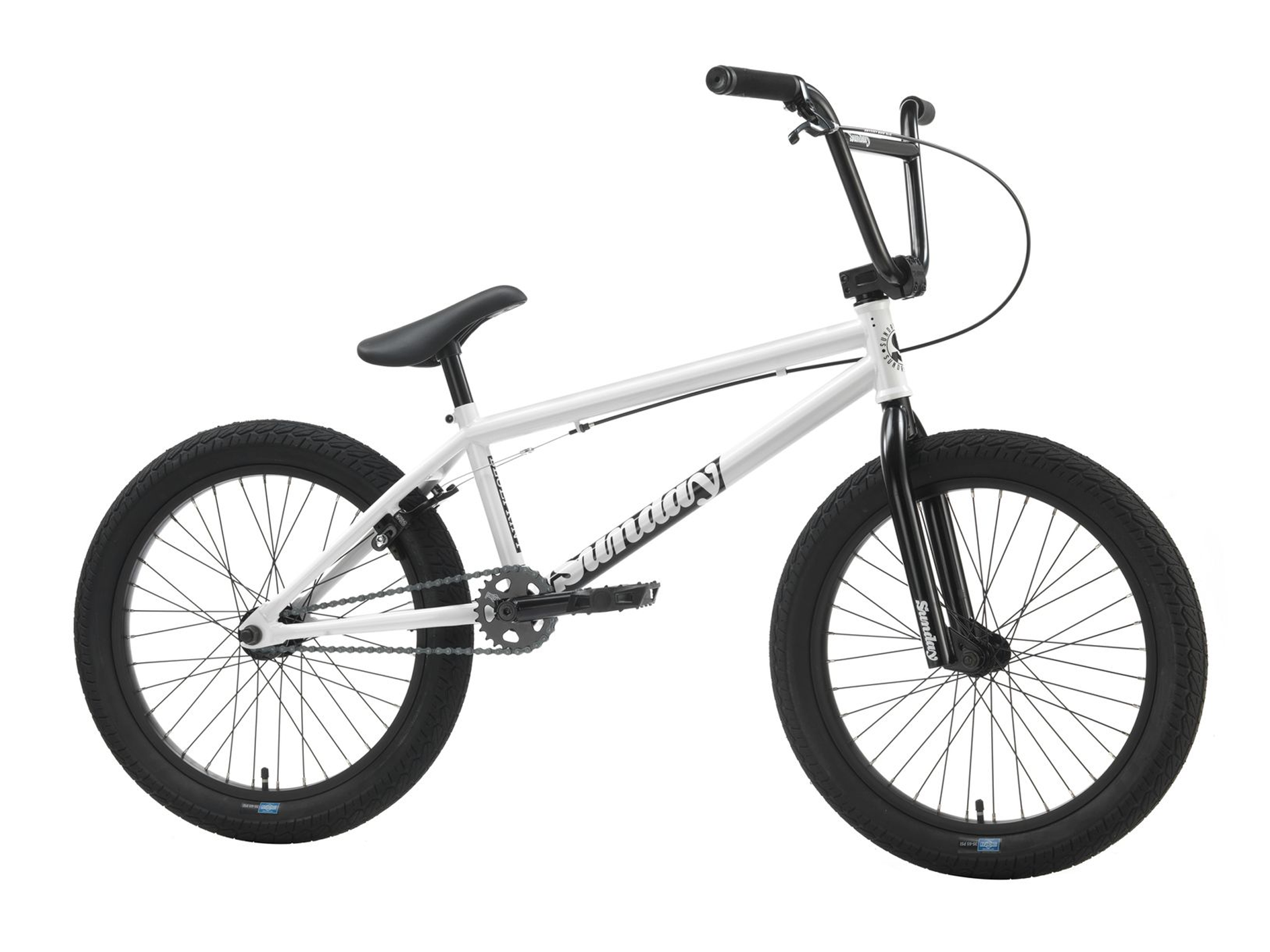

Sunday 20" Blueprint

The Blueprint is a bike for new riders that is built around a pro-level geometry to help them progress faster.

This bike is equipped with hassle-free parts like Odyssey Springfield brakes, a Sunday Freeze stem and Current 2.4” tyres to help keep you focused on the important part - riding. The Blueprint comes with an integrated head tube this year for greater durability, ease of assembly and pro style points.

Features
- Sunday Current v2 2.4"
- Odyssey Springfield brakes
- FSA integrated headset
- Sunday Cornerstone grips
- Sunday Freeze front load stem
- Sunday Sabretooth sprocket
- KMC S1 chain

Specifications
Frame - Sunday 'Blueprint', 20"/20.5" top tube, integrated 1-1/8" head tube
Fork - Sunday 'Blueprint', 20" fork w/ 2-piece steerer tube and welded pre-load
Handlebar - Sunday, 2-piece
Stem - Sunday 'Freeze' front load, 48mm
Headset - FSA integrated, 1-1/8"
Alloy Cap - FSA aluminium cap
Brake Lever - Aluminum, U-brake compatible
Brakes - Odyssey 'Springfield' U-brake
Brake Cable - Odyssey 'Quik Slic'
Grips - Sunday 'Cornerstone'
Seat - Sunday 'Badge', seat and post combo
Seat Post - Integrated
Seat Clamp - Integrated
Sprocket - Sunday, 25T, steel
Cranks - 160mm, 3-piece, Cr-Mo
BB Parts - Loose-ball, American, 19mm
Pedals - Wellgo platform, plastic
Rims - P-7X aluminum, 20", 36H
Front Hub - Sunday, 36H, low-flange, loose-ball, 3/8" axle
Rear Hub - Sunday, 36H,14mm axle w/ 9T Driver
Spokes - 14g steel, black
Tyres - Sunday 'Current', 20 x 2.4" (F & R)
Chain - KMC S1
Approx. Weight - 11.7kgs (with brakes)

Frame Geometry
Top Tube Length - 20"/20.5"
Head Tube Angle - 75°
Seat Tube Angle - 71°
Chainstay Length - 13.2-13.5”
Bottom Bracket Height - 11.5"
Standover - 8.75"

Handlebar Geometry
Rise - 9"
Width - 28.5"
Backsweep - 12°
Upsweep - 4°
